Features
■ We use A grade monocrystalline solar cell to gain the max. solar energy. High efficiency solar panel can ensure fast charging.
■ Branded LED chips(Epistar, Cree) privide quality lighting
■ High quality deep cycle LiFePO4 lithium battery with over 2,000 lifecycles inside.
■ Light case adopts die casting aluminum and polycarbonate, spray painting process, anti-corrosion & antioxidant.
■ Smart controller built in, light control and time control. In energy saving mode, working hours ≥42h.
■ In areas which are lack of sunshine, the AC & DC complementary mode is recommended.
■ No trenching, no cabling, easy installation, labor cost saver.
Product specifications
| Parameters | |
| Solar Panel | 18V/25W Monocrystalline Solar Panel,Grade A |
| LED | 12W,10*18mil Epistar Chip |
| Lifespan of LED | More Than 50,000 Hours |
| Luminous Flux | 1320lm~1440m |
| Color Temperature | 3000K~7500K |
| Beam Angle | 120° |
| Battery | 12V, 14AH Li-ion lithium battery or 12.8V 12AH LiFePO4 Lithium Battery |
| Discharging Time | 18h (100% power), 42h (energy saving mode) |
Charging Time | 9h(AM1.5,1000W/m2,25℃) |
| Material | 6063 Aluminum,PC |
| Working Temperature | -25℃~55℃ |
| Product Size | Φ515*720mm |
| Packing Size | 570*570*780mm |
| Number of Packing | 1 set/carton |
| Net Weight | 7.1KG |
| Gross Weight | 9KG |
| Diameter of Mounted Lamppost | 76mm |
| Control Mode | Light Control, time control |
| Package Quantity | 120 Sets/20'GP, 240 Sets/40'HQ |

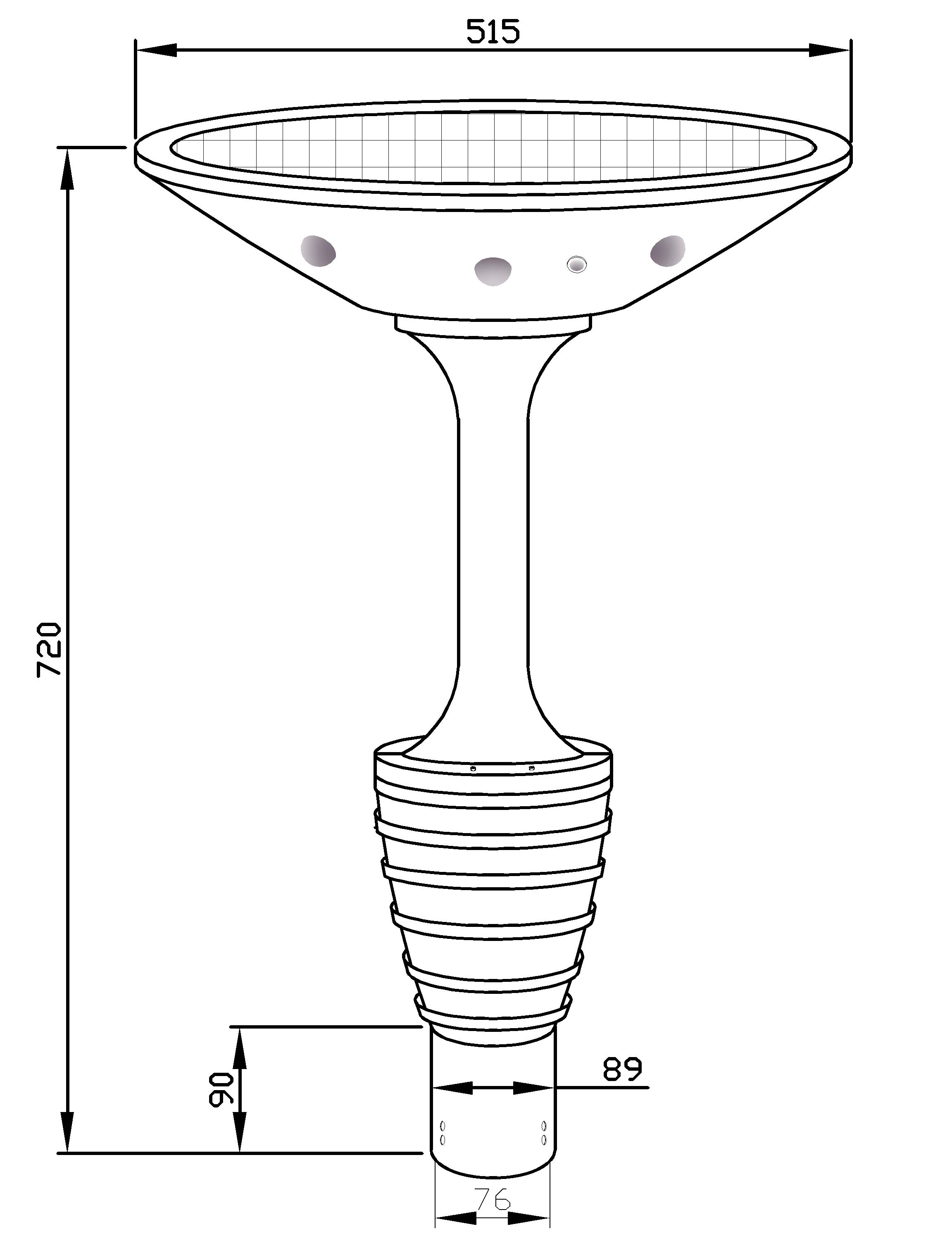

Size Chart
Certificates
Application Areas
Solar garden light is widely used in public areas and residential areas as follows
▲ Road and street
▲ Office buildings
▲ Gardens, parks
▲ Residential areas like villa and appartment or houses.
It can provide the friendly lighting while beautify the environment.

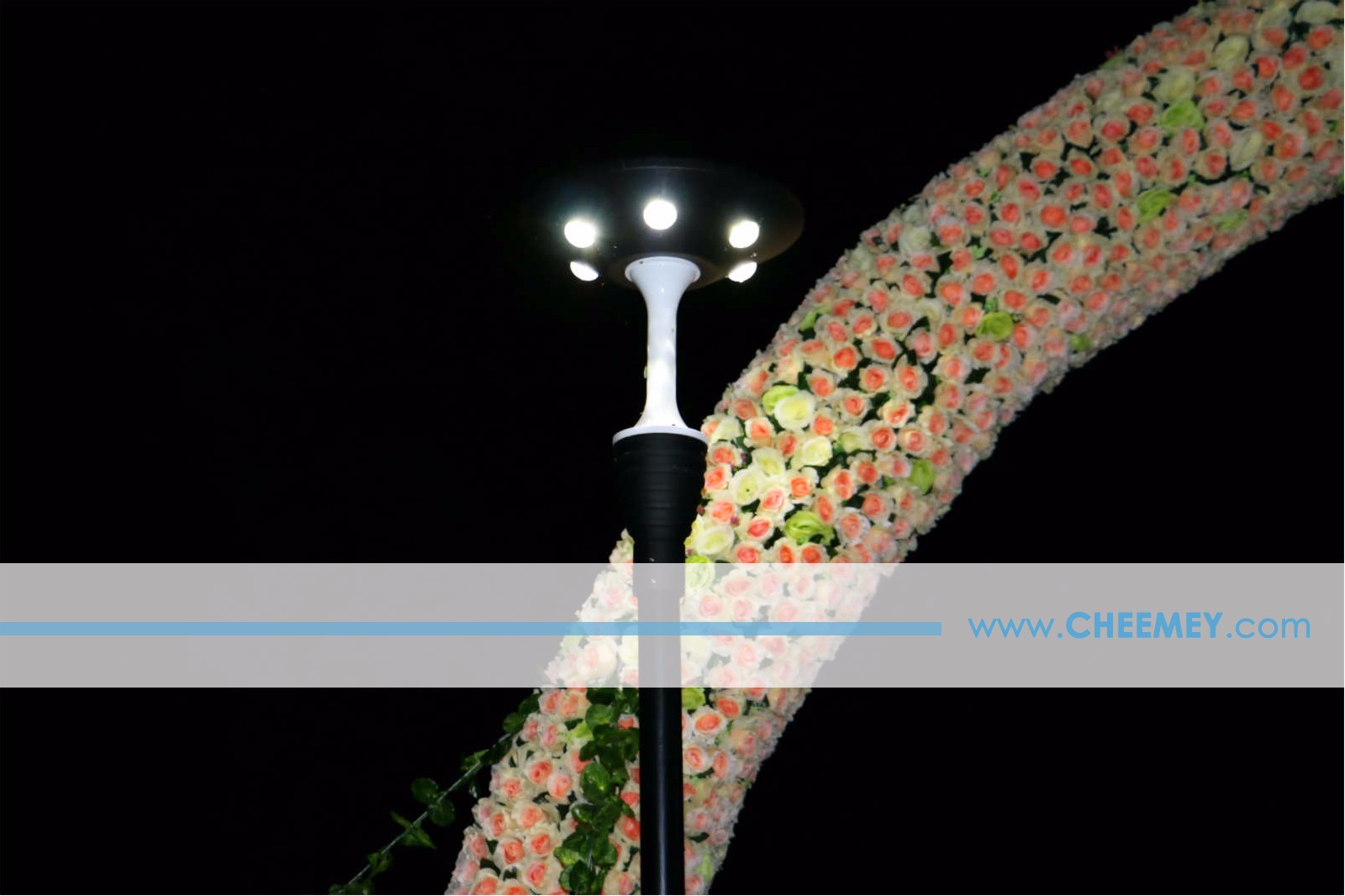

Project Cases

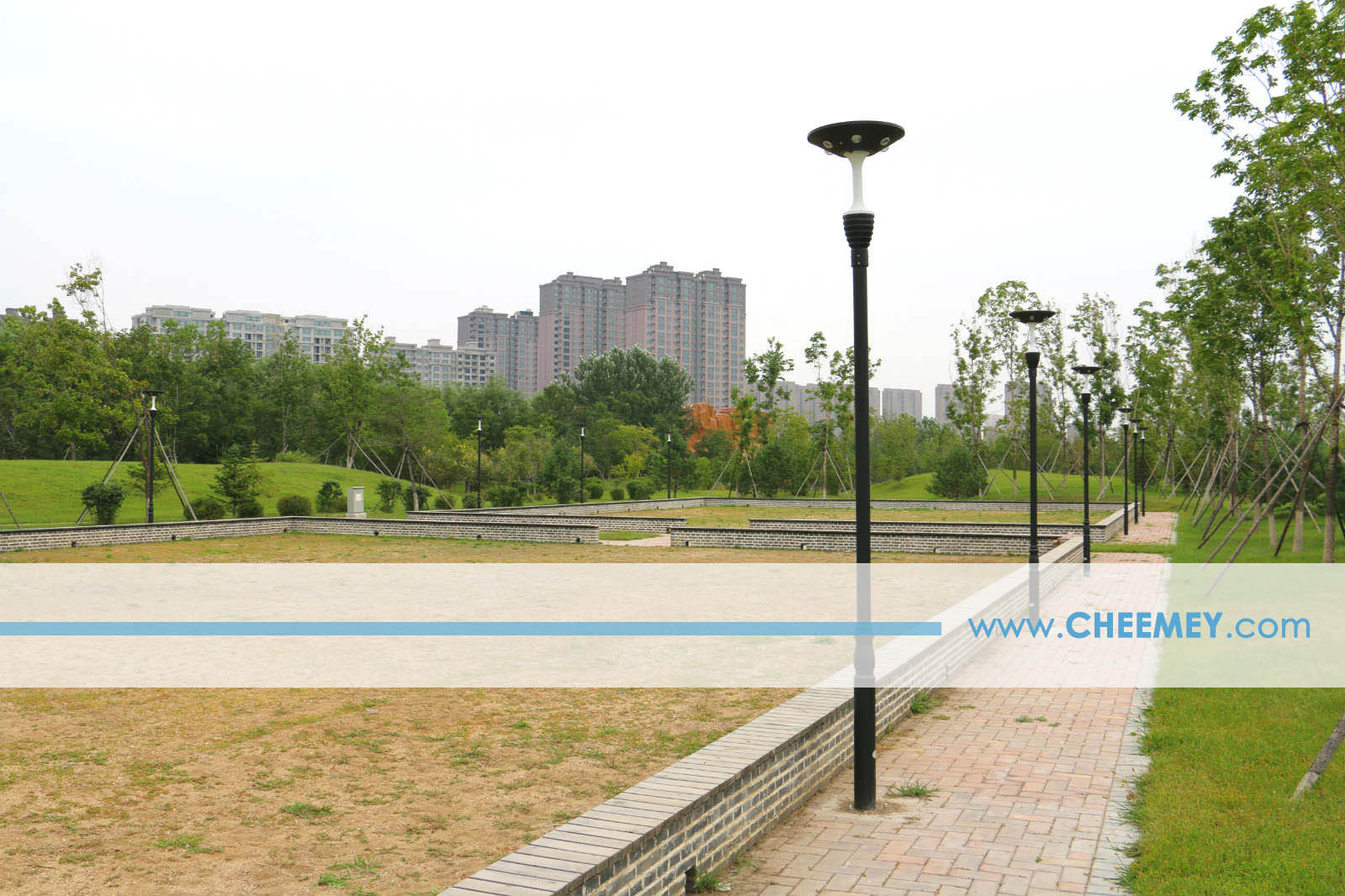

▲ Location: Changchun, China
FAQ
1. How many hours can the light work?
Normally, after fully charged, the light can work ≥18h(100% power), in energy saving mode, the light will work 100% in first 3 hours, and rest 11 hours will work in 30% power. The working mode is adjustable.
2. How many rainy days can the light work?
The light can work for 2~3 rainy days.
3. Is the battery replaceable?
Yes. The battery inside is easy to install. Normally, the lifetime of the LiFePO4 lithium battery is 2,000 cycles,≈5 years.
If the battery broken during the warranty period, we will offer you free replacement, and you need to relace the battery under guidance.
4. How does the light work?
The light is fully antuomatic light control. During the daytime, the solar panel will gain the power from the sun and charge the battery, when night comes, the light will automaticlly turn on, the battery inside
will provide the energy to the light.
5. Can we buy samples?
Yes. Please contact with our sales for sample order conditions. We will recommend you the suitable models according to your areas.
6. What's your warranty?
We provide 3 years warranty for compelet set of light. Free replacement will offer during the warranty period.
Our Factory
We own over 4,000 square meters of workshop, in year 2017, we have rebuilt our workshop due to the expansion of production line.
Our factory has passed the factory inspection by SGS.
